Oak Sampler

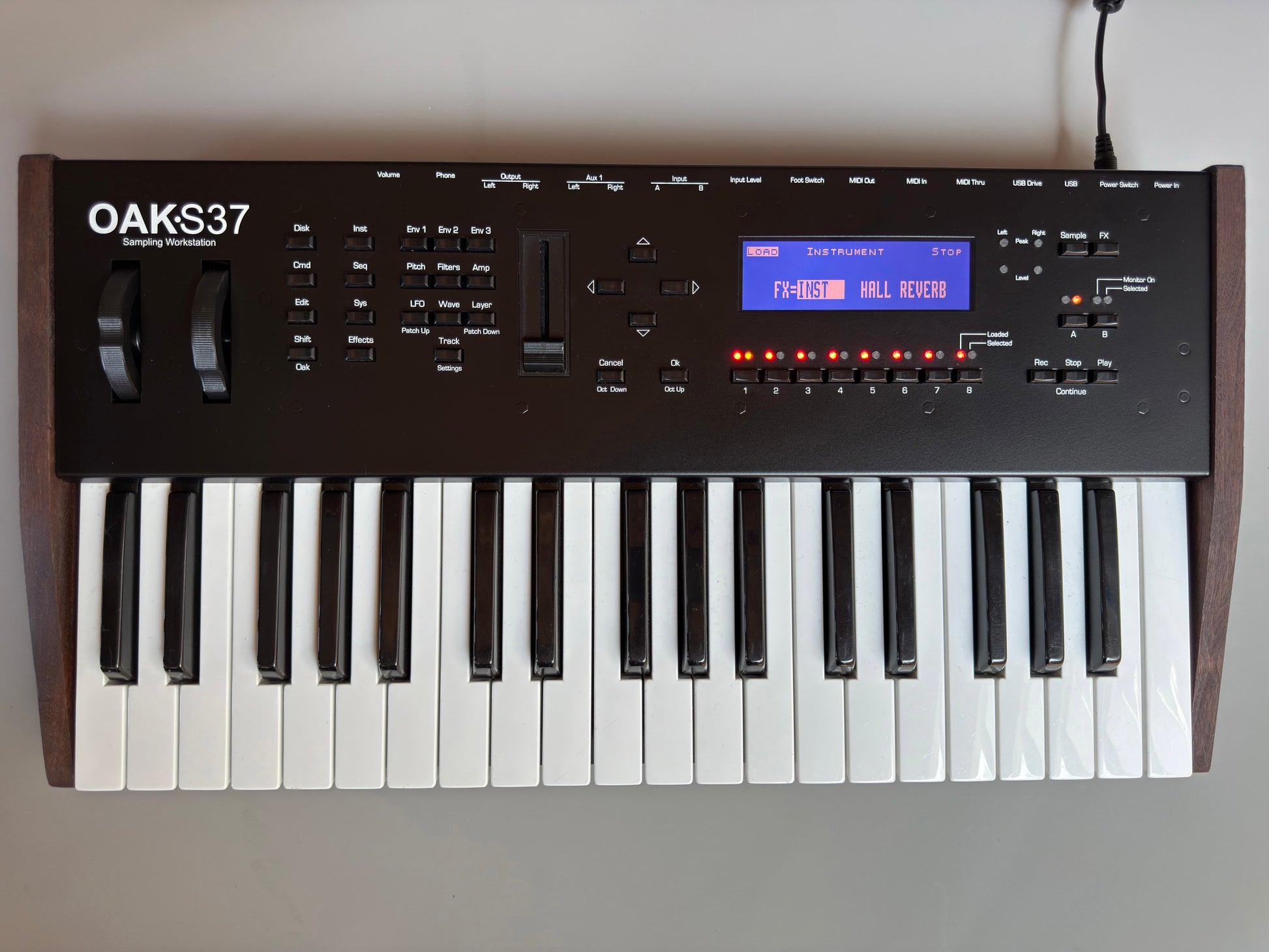

OAK-S37 Sampling Workstation

$2,250.00 USD

Before Purchasing

I understand that I need to provide my own ASR-10 OS file (see Getting Started) I understand that I need to provide my own ASR-10 Firmware file (see Getting Started)

The OAK-S37 is a 16-bit sampling workstation that faithfully recreates the ASR-10 sound, effects, filters, and workflow. It runs the original ASR-10 audio algorithms and O.S. on modern hardware to recreate the classic with modern portability and reliability.

*Operating system and firmware files not included. See FAQ.

Features

16-bit stereo sampling at 30/44.1 kHz
16MB sample memory
31 voice polyphony
3 envelopes, 2 filters
50 Factory Effects
Sequencer
Resampling

These features are provided by the original ASR-10 operating system. features may vary by OS version.

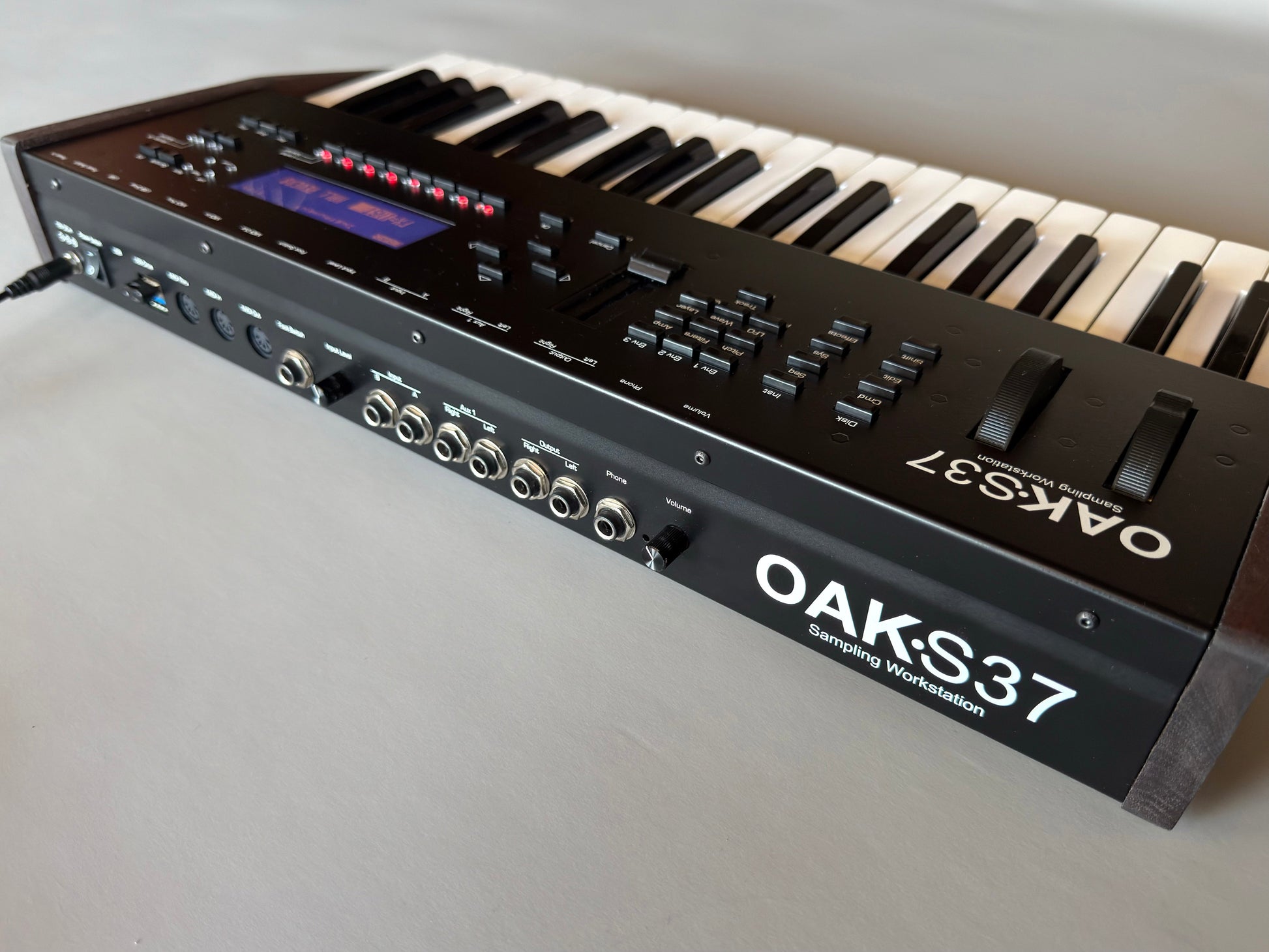

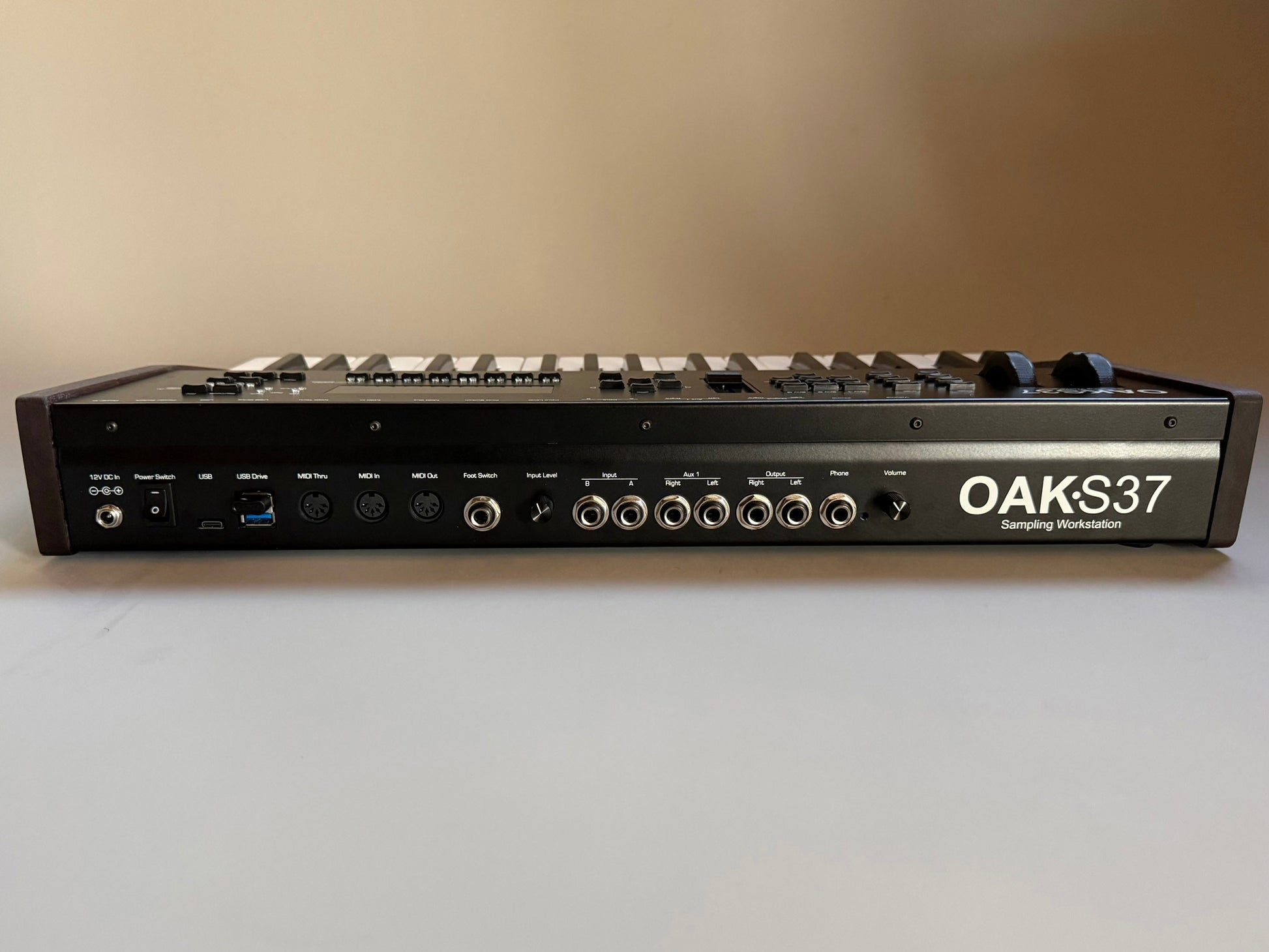

Specifications:

2 x 1/4" unbalanced main outputs
2 x 1/4" unbalanced assignable outputs
2 x 1/4" unbalanced sampling inputs (Line Level)
1 x 1/4" TRS headphone output
MIDI In / Out / Thru
Footswitch jack
USB drive port
37 key semi-weighted keyboard
Pitch and Mod wheels
12VDC power input (Adapter Included)

Physical:

Dimensions: 22x12x3 inches
Weight: 8lbs
Construction: Steel, Wood, ASA

OAK-S37 units are built individually. Because of this, small cosmetic differences may occur. These may include faint handling marks or small variations in the finish, but they will not affect normal use.
